WIRELESS | |
Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX6000 • 5 GHz: 4804Mbps (802.11ax, HE160) • 2.4 GHz: 1148 Mbps (802.11ax) |
WiFi Range | 3+ Bedroom Houses
• 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range • High-Power FEM Improves transmission power to strengthen signal coverage |
WiFi Capacity | High
• Dual-Band Allocate devices to different bands for optimal performance • OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients • Airtime Fairness Improves network efficiency by limiting excessive occupation • DFS Access an extra band to reduce congestion • 8 Streams Connect your devices to more bandwidth |
Working Modes | • Router Mode • Access Point Mode |
HARDWARE | |
Ethernet Ports | • 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports |
USB Support | 1× USB 3.0 Port USB Sharing: • FTP Server • Media Server • Samba Server |
Buttons | • LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button |
Power | • 12 V/3.3 A |
SECURITY | |
WiFi Encryption | • WPA3*6 • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN • PPTP • L2TP |
VPN Client | • OpenVPN • PPTP • L2TP |
SOFTWARE | |
Protocols | • IPv4 • IPv6 |
Service Kits | HomeShield Learn More> |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls | HomeShield Parental Controls
• Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports |
WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
Quality of Service | QoS by Device |
Cloud Service | • Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS |
NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
DHCP | • Address Reservation • DHCP Client List • Server |
DDNS | • TP-Link • NO-IP • DynDNS |
Management | • Tether App • Webpage Check Web Emulator> |
OTHER | |
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
TEST DATA | |
WiFi Transmission Power | FCC: <24dBm (5.25GHz~5.35GHz&5.47GHz~5.73GHz) <30dBm (5.15GHz~5.25GHz&5.735GHz~5.835GHz) <30dBm (2.4GHz) |
WiFi Reception Sensitivity | • 2.4 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm, 11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm, 11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm • 5 GHz: 11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm, 11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm, 11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm |
PHYSICAL | |
Dimensions (W×D×H) | 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm) |

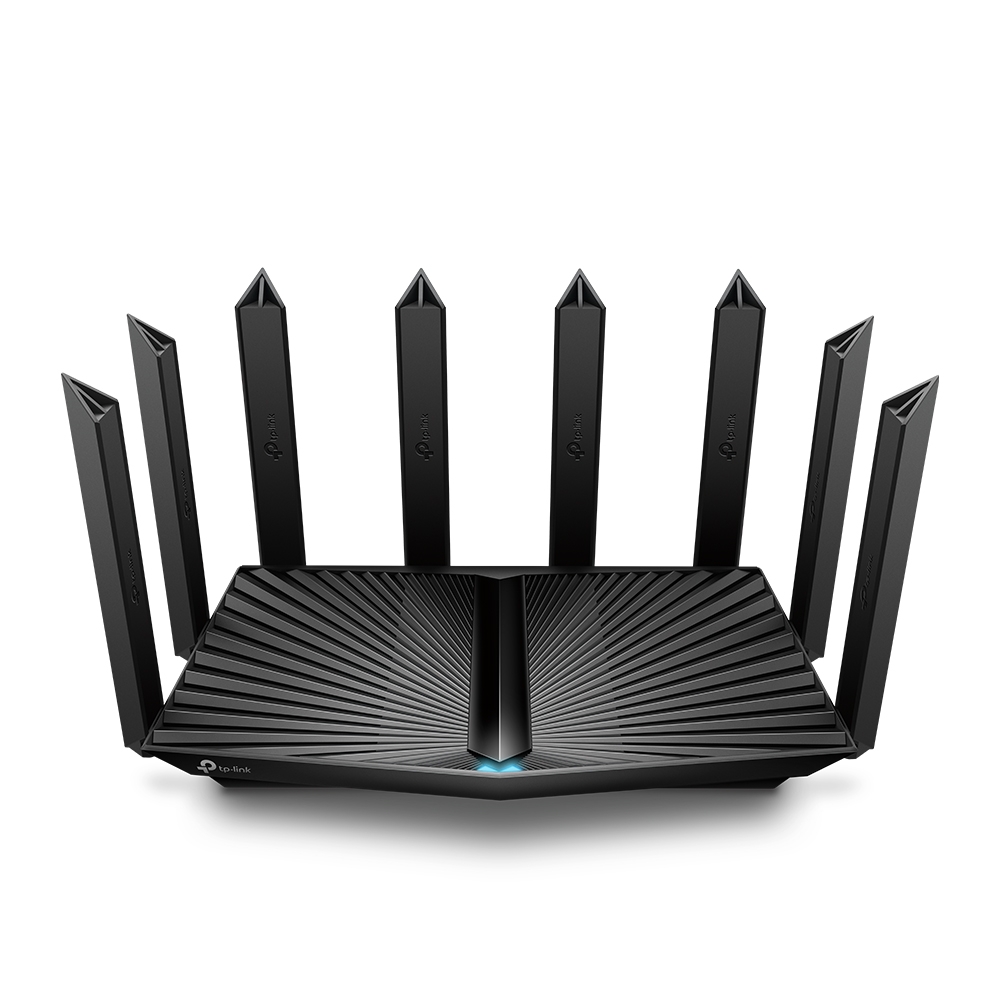

Package Contents | • Wi-Fi Router Archer AX80 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
